CONFIGURE YOUR COMMODORE LAPTOP

Choose product options and continue

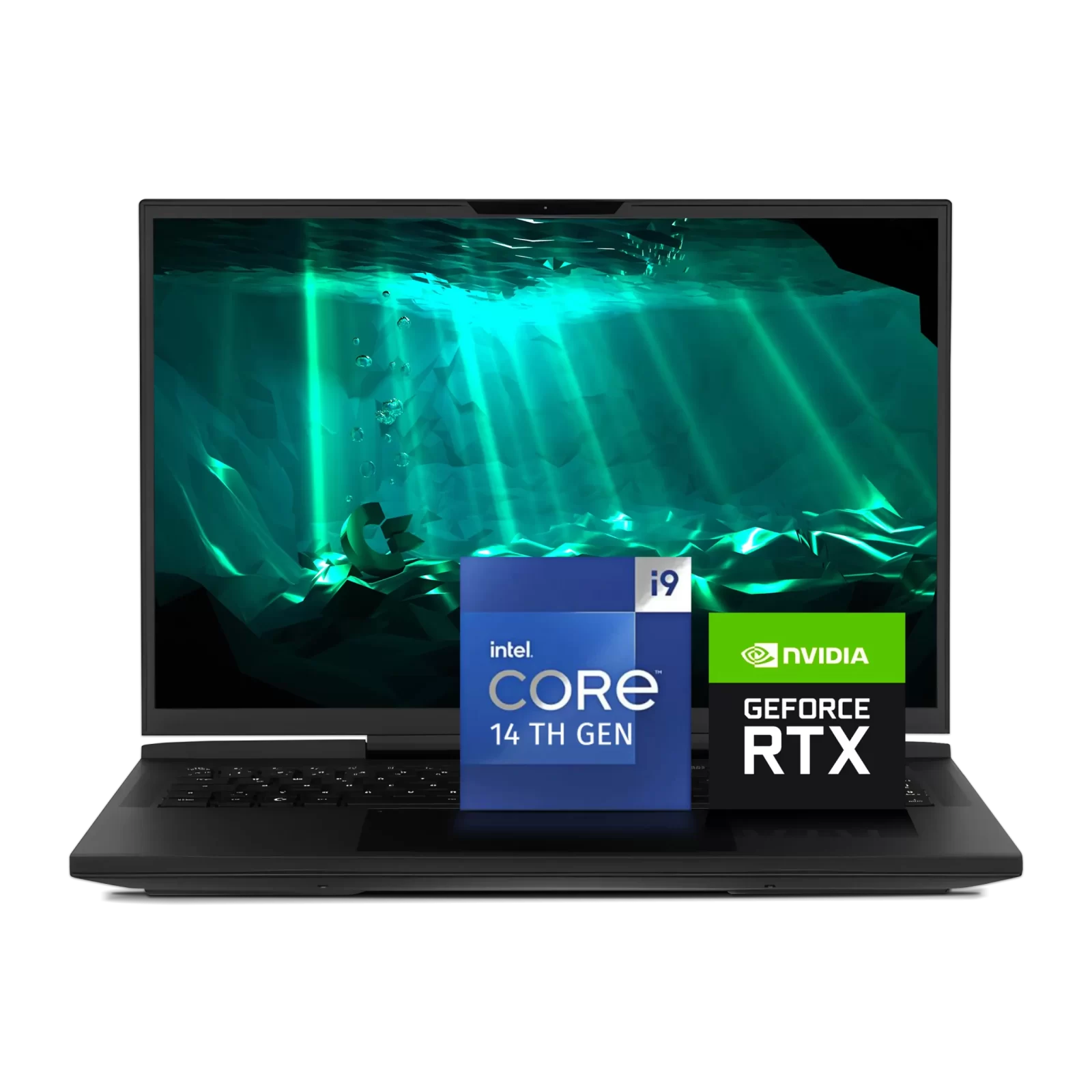

ORION 17 – Gen6

 2.202,00 VAT included

Options amount
0
Final total
2.202,00

Technical Details

  • Display / Monitor

    Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.

    15.3” WQXGA IPS | 16:10 | 240 Hz

    • Screen size: 17″
    • Type: LED-Backlight Display, matte/non-glare
    • Viewing angles: 89°/89°/89°/89°
    • Refresh rates: 60 Hz, 240 Hz
    • Resolution: 2560 x 1600 Pixels
    • Color gamut: 99 % sRGB
    • Brightness: ~380 nits
    • Contrast: ~950:1
    • Additional features: G-Sync
    • Display model: BOE NE170QDM-NZ1
    • Opening angle: ~ 135°

    Internal display connection (changeable via UEFI):
    iGPU: iGPU Only or MsHybrid (NVIDIA Optimus)
    dGPU: dGPU Only (via MUX switch)

  • Chassis

    Materials:

      • Display lid, base unit and bottom case made of aluminum
      • Display frame made of plastics
      • Base unit made of plastic with rubberized “soft touch” coating

    Dimensions:

    • width: 38.2 cm; height: 2.7 cm; depth: 27.3 cm
    • Weight: 2.8 kg with battery
  • Keyboard and Touchpad

    Mechanical keyboard with number pad.
    CHERRY MX ULTRA LOW PROFILE TACTILE | Total key travel: 1,8 mm | Pre travel: 0,8 mm (The numpad and function keys are equipped with much quieter, but no less solid membrane keys for technical reasons.)
    Multicolor (RGB) per-key backlit keyboard, means that the writing on the keys have backlight! Brightness can be controlled and deactivated by special keys.

    • Quiet rubberdome / membrane keyboard with number pad. Multicolor (RGB) 4 zone backlit keyboard.
    • Multicolor (RGB) per-key backlight.
    • COM super-key on all layouts!
    • Glass precision clickpad (115 x 70 mm) with integrated buttons and multi-gesture- & scroll-function
  • Battery & power supply

    Maximally large 99 Wh battery, Lithium polymer
    Changeable (screwed inside).

    Power supply:

    • RTX 4060 / 4070: 280 Watt (160 x 69 x 25 mm | 861 g incl. power cord)
    • RTX 4080 / 4090: 330 Watt (200 x 100 x 27 mm | 982 g incl. power cord)

    Power plug:

    • Type: Coaxial.
    • Inner diameter: 2.5mm.
    • Outer diameter: 5.5mm.
    • Length: 12.5mm.

    Battery life:

    up to 10 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
    up to 7 hours at medium brightness with Wifi, at office work.

    We’re testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, Wi-Fi & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!). We always test with integrated graphics when a dedicated and integrated graphics chip is installed.
    This way you get an information of maximal possible battery life. Starting from this, you can manage your individual battery life depending on your demands and to influence it, e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there’s a Bluetooth device connected. Full display brightness as well is hardly always necessary.

  • Main processor

    Intel Core i9-14900HX
    (24 Cores (8 Performance cores | 16 Efficient cores) | 32 Threads | Max. 5,8 GHz | 36 MB Intel Smart Cache, 55 W TDP *).

    Thermal compound between CPU die and heatsinks: Thermal Grizzly Conductonaut

    * The Thermal Design Power (TDP) only describes the power consumption under load at base clock frequency.
    For full performance, the power draw is increased greatly for a short time or sustained (depending on the notebook’s cooling capacity).

  • Graphics card

    NVIDIA GeForce RTX 4060 | 8 GB GDDR6 VRAM | 115 W TGP (+25 W Dynamic Boost).

    NVIDIA GeForce RTX 4070 | 8 GB GDDR6 VRAM | 115 W TGP (+25 W Dynamic Boost).

    NVIDIA GeForce RTX 4080 | 12 GB GDDR6 VRAM | 150 W TGP (+25 W Dynamic Boost).

    NVIDIA GeForce RTX 4090 | 16 GB GDDR6 VRAM | 150 W TGP (+25 W Dynamic Boost).

    Thermal compound between GPU die and heatsinks: Thermal Grizzly Conductonaut

    Energy efficient CPU integrated Graphics:
    Intel UHD Graphics | 32 Execution Units (EUs) | max. 1.65 MHz graphics frequency

    At least 3 displays can be driven simultaneously:

    • 1x internal notebook display.
    • 1x HDMI 2.1
    • 1x Thunderbolt 4 (DisplayPort 1.4) (additional displays possible via Thunderbolt dockingstation or MST adapter (not tested)).
  • Memory



    Type: DDR5 SO-DIMM (up to 5600 MHz)
    Manufacturer and speed see configurator
    Default and maximum see configurator
    Performant Dual Channel mode (2 slots).

  • Mass storage (SSD / HDD)



    Two slots for super fast SSDs in space-saving M.2 form factor.

    2x M.2 2280 SSD via PCI Express 4.0 x4

  • Communication / Network



    Wired/LAN:
    With RTX 4060/70: 1 Gigabit LAN (Motorcomm YT6801, 10/100/1000 Mbit/s)
    With RTX 4080/90: 2,5 Gigabit LAN (Realtek RTL8125BG Ethernet, 10/100/1000/2500 Mbit/s)

    Wireless/WIFI:

      • Intel Wi-Fi 6E AX211:
      • Interface: M.2 2230 / CNVio2
      • Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
      • DualBand 2,4 / 5/6 GHz
      • Communication channels: 2×2
      • Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI).

    Bluetooth:
    Integrated in above Intel Dual Band Wi-Fi 6E AX211
    Version: Dual Mode Bluetooth 5.2

  • Webcam / Laptop camera



    FullHD (1080p) Webcam / camera including microphone

  • Sound / Audio



    High Definition Audio
    2 speakers: 2x 2W
    Integrated microphone

  • Ports



    Left side (from left to right):

    • Kensington Lock
    • USB-A 3.2 Gen1
    • Mic-in
    • Headphone-out (compatible with combi-plugs)

    Right side (from left to right):

    • Card reader (SD/SDHC/SDXC)
    • 2x USB-A 3.2 Gen1

    Back side (from left to right):

    • Magnetic hose mounting for COMMODORE Aquaris (only with RTX 4080/90)
    • Thunderbolt 4 / USB-C 4 Gen3x1 (Hardwired to: dGPU | DisplayPort 1.4a | G-SYNC | no PowerDelivery DC-In)
    • HDMI 2.1 (Hardwired to: dGPU | HDCP 2.3 | G-SYNC-compatible)
    • RJ45 Port 2,5 Gbit (LAN)
    • Power plug (DC-In)
    • *Requirement: 20V / 5A (100 Watts)

    *Requirement: 20V / 5A (100 Watts)

  • Card reader



    Full size SD card reader (SD/SDHC/SDXC)
    Speed: UHS-I

  • Security



    • Kensington-Lock mounting
    • Webcam & audio can be deactivated directly via the UEFI / BIOS
    • Wifi & Bluetooth can be deactivated directly via the UEFI / BIOS
    • TPM 2.0
  • Cooling System & Fan



    Temperature controlled fan
    At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.

    Custom performance and fan control with the COMMODORE Control Center
    With the COMMODORE Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!

System Service

  • Operating systems



    We install Ubuntu (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at Commodore do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces.


    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.

    Windows on request

    If you don’t want or can’t do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!

    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.

  • UEFI firmware

    With all our notebooks, you have the possibility to protect your privacy already on firmware level using the UEFI (Unified Extensible Firmware Interface).

    For this purpose, the following functions can be completely deactivated:

    • On Intel CPUs: Intel Management Engine (IntelME)
    • Webcam
    • On Intel CPUs: Audio (Microphone & Sound)
    • WLAN & Bluetooth

    In addition, our Premium UEFI firmware allows chipset-specific settings and definitions for hardware components in order to run adjust the device optimally to your use case.

    Please note: All notebooks built in 2021 and later do not support switching the UEFI firmware to the outdated BIOS firmware standard.

  • Warranty



    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)

    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we’re offering replacement parts and service for many years!

    For warranty cases, we’ll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support.

  • Package Contents



    • 1x Commodore ORION 17 – Gen6 preinstalled & configured
    • 1x Power supply
    • 1x Power cord
    • 1x Recharchable battery
    • 1x First steps manual incl. short technical manual
    • 1x WebFAI USB drive (www.webfai.de) for Linux recovery
    • 1x Drivers for Windows downloadable
    • 1x For the installation of own SSDs or HDDs necessary screws
    • 1x Commodore Computers fan package consisting of two posters, two pens and additional, seasonal goodies 🙂
